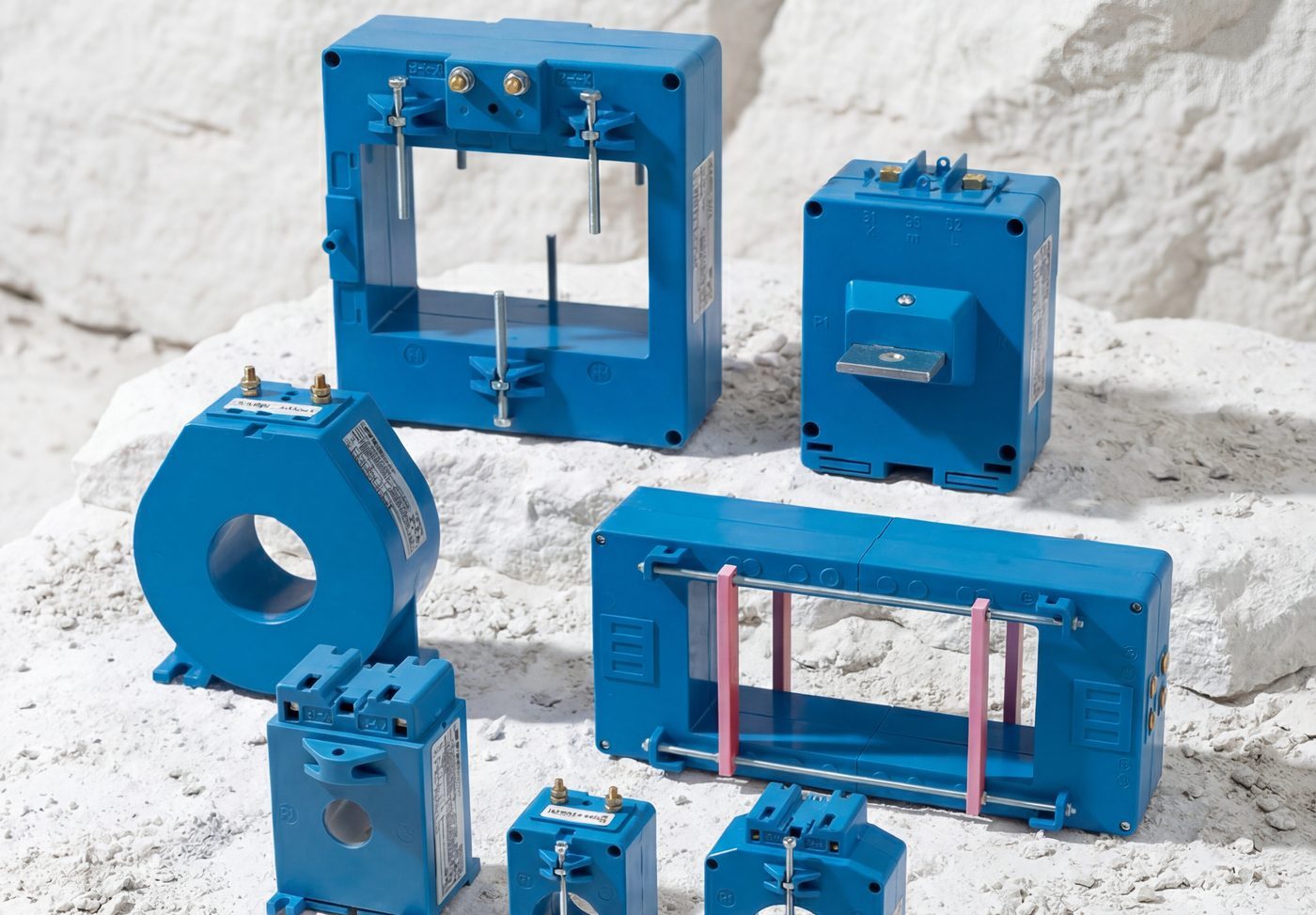

Akım Trafoları (Koruma)


Seri TAC005 TAC008 TAC020 TAC071 TAC021 TAC033 TAC040 TAC051 TAT061 TAT050
Kablo    Primer Sargılı  Ø 17 mm Ø 21 mm  Ø 24 mm  Ø 32 mm    Ø 51 mm  Ø 50 mm
Bara 15x5 mm 21x10 mm 30x10 mm 40x10 mm 30x10 mm 61x31 mm
Gövde_Genişliği 56 mm 70 mm 85 mm 70 mm 70 mm 70 mm 70 mm 85 mm 90 mm 117 mm
BURDENS VA
A / Cl. 5 5 10 5 10 5 10 5 10 5 10 5 5 10 5 5 10 15 20
5A 1 2.5 2 6 3

10 A

1 2.5 2 6 3

15 A

1 2.5 2 6 3

20 A

1 2.5 2 6 3

25 A

1 2.5 2 6 3

30 A

1 2.5 2 6 3 1
40 A 1 2.5 2 6 3 1.5
50 A 1 2.5 2 6 3 2
60 1 2.5 2 6 3 2.5 1     1
80 A 1 2.5 2 6 3 3.5 1.5     1.5
100 A 1     6 3 4 1.5 2 0.85 2
120 A       6 3 5 1.5 3 1 2.5           5 2 1 1
150 A       6 3 6 2 4 1.5 3 1         5 3.5 1.5 1.5
200 A       6 3     5 2 4 1   2     7 5 2.5 2
250 A       6 3     6 2.5 5 1.5   3     8 6 3 2.5
300 A       6 3         6 2   3.5     8.5 7 3.5 3
400 A       6 3         8 2.5 1 4     10 7 4 3.5
500 A       6 3         10 3 1.5 5 1.5   10 9 5 3.5
600 A       6 3         12 4 2 6 2 2 12.5 10 6 2.5
800 A                       3 7 2.5 3 12.5 10 7 3
1000 A                       3.5 10 2.8 4 15 10 8 3.5
1200 A                         12 3.3 5
1500 A                         14 4 6
2000 A                             8








Seri TAT063 TAT090 TAT082 TAT101 TAT126 TAT127 TAT128 TAT129 TAT165 TAT225
Kablo    Ø 90 mm
Bara 63x30 mm   82x37 mm 102x55 mm 105x38 127x38 127x55 mm 127x85 mm 127x105 mm 165x127 mm 225x127 mm
Gövde_Genişliği 105 mm 147 mm 130 mm 129 mm 98 mm 185 mm 185 mm 185 mm 325 mm 385 mm
BURDENS VA
A / Cl. 5 10 5 10 5 10 15 5 10 15 5 10 5 10 15 20 5 10 15 5 10 15 5 10 15 5 10 15
400 A 4 1.5     10 5         4 1.5
500 A 5 1.5     12 6 1.5 3 2   5 1.5
600 A 6 2 3 1 15 7 2 8 4   6 2
800 A 8 2.5 5 1.5 20 8 3 12 6 2 8 2.5 25 10 5 2.5
1000 A 10 3 6.5 2 20 12 4 15 7 3 10 3 30 12 6 3 30 10 5 30 10 5 30 10 5 30 10 5
1200 A 12 3 8 2.5 25 13 5 15 8 4 12 3 35 15 7 3.5 35 12 6 35 12 6 35 12 6 35 12 6
1500 A 12 3 9 2.5 40 15 6 15 8 4 12 3 45 16 8 4 40 15 8 40 15 8 40 15 8 40 15 8
2000 A 12 3 12.5 3 50 15 7 20 10 4 12 3 55 50 10 5 60 20 10 60 20 10 60 20 10 60 20 10
2500 A     15 3 50 15 7 25 12 6 15 4 75 25 12 6 70 20 10 70 20 10 70 20 10 70 20 10
3000 A               30 15 7 15 4 90 30 15 6 80 25 12 80 25 12 80 25 12 80 25 12
4000 A               30 15 7 15 4 120 40 20 8 100 30 15 100 30 15 100 30 15 100 30 15
5000 A                         150 50 25 10 40 15 5 40 15 5 40 15 5 40 15 5
6000 A                                       40 15 5 40 15 5 40 15 5
8000 A                                             40 15 5 40 15 5





  TAC005 Serisi
Oran cl. 5P5 VA Ürün Kodu
5/5A 1 TAC005005K05
10/5A 1 TAC005010K05
15/5A 1 TAC005015K05
20/5A 1 TAC005020K05
25/5A 1 TAC005025K05
30/5A 1 TAC005030K05
40/5A 1 TAC005040K05
50/5A 1 TAC005050K05
60/5A 1 TAC005060K05
80/5A 1 TAC005080K05
100/5A 1 TAC005100K05


  TAC08 Serisi
Oran cl. 5P5 VA Ürün Kodu
5/5A 2,5 TAC008005K05
10/5A 2,5 TAC008010K05
15/5A 2,5 TAC008015K05
20/5A 2,5 TAC008020K05
25/5A 2,5 TAC008025K05
30/5A 2,5 TAC008030K05
40/5A 2,5 TAC008040K05
50/5A 2,5 TAC008050K05
60/5A 2,5 TAC008060K05
80/5A 2,5 TAC008100K05


Oran cl. 5P10 VA Ürün Kodu
5/5A 2,5 TAC008005L05
10/5A 2,5 TAC008010L05
15/5A 2,5 TAC008015L05
20/5A 2,5 TAC008020L05
25/5A 2,5 TAC008025L05
30/5A 2,5 TAC008030L05
40/5A 2,5 TAC008040L05
50/5A 2,5 TAC008050L05
60/5A 2,5 TAC008060L05
80/5A 2,5 TAC008100L05


  TAC020 Serisi
Oran cl. 5P5 VA Ürün Kodu
5/5A 6 TAC020005K05
10/5A 6 TAC020010K05
15/5A 6 TAC020015K05
20/5A 6 TAC020020K05
25/5A 6 TAC020025K05
30/5A 6 TAC020030K05
40/5A 6 TAC020040K05
50/5A 6 TAC020050K05
60/5A 6 TAC020060K05
80/5A 6 TAC020080K05
100/5A 6 TAC020100K05
150/5A 6 TAC020150K05
200/5A 6 TAC020200K05
250/5A 6 TAC020250K05
300/5A 6 TAC020300K05
400/5A 6 TAC020400K05
500/5A 6 TAC020500K05
600/5A 6 TAC020600K05


Oran cl. 5P10 VA Ürün Kodu
5/5A 3 TAC020005L05
10/5A 3 TAC020010L05
15/5A 3 TAC020015L05
20/5A 3 TAC020020L05
25/5A 3 TAC020025L05
30/5A 3 TAC020030L05
40/5A 3 TAC020040L05
50/5A 3 TAC020050L05
60/5A 3 TAC020060L05
80/5A 3 TAC020080L05
100/5A 3 TAC020100L05
150/5A 3 TAC020150L05
200/5A 3 TAC020200L05
250/5A 3 TAC020250L05
300/5A 3 TAC020300L05
400/5A 3 TAC020400L05
500/5A 3 TAC020500L05
600/5A 3 TAC020600L05


  TAC071 Serisi
Oran cl. 5P5 VA Ürün Kodu
30/5A 1 TAC071030K05
40/5A 1.5 TAC071040K05
50/5A 2 TAC071050K05
60/5A 2.5 TAC071060K05
80/5A 3.5 TAC071080K05
100/5A 4 TAC071100K05
120/5A 5 TAC071120K05
150/5A 6 TAC071150J05


Oran cl. 5P10 VA Ürün Kodu
60/5A 1 TAC071060L05
80/5A 1.5 TAC071080L05
100/5A 1.5 TAC071100L05
120/5A 1.5 TAC071120L05
150/5A 2 TAC071150Y05

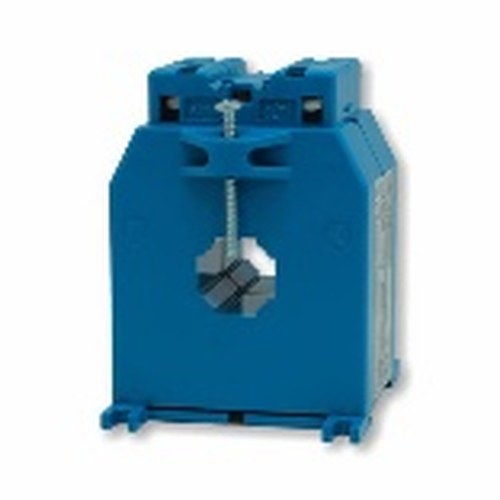

  TAC021 Serisi
Oran cl. 5P5 VA Ürün Kodu
100/5A 2 TAC021100K05
120/5A 3 TAC021120K05
150/5A 4 TAC021150K05
200/5A 5 TAC021200K05
250/5A 6 TAC021250K05


Oran cl. 5P10 VA Ürün Kodu
100/5A 0.85 TAC021100L05
120/5A 1 TAC021120L05
150/5A 1.5 TAC021150L05
200/5A 2 TAC021200L05
250/5A 2.5 TAC021250L05


  TAC033 Serisi
Oran cl. 5P5 VA Ürün Kodu
60/5A 1 TAC033060K05
80/5A 1.5 TAC033080K05
100/5A 2 TAC033100K05
120/5A 2.5 TAC033120K05
150/5A 3 TAC033150K05
200/5A 4 TAC033200K05
250/5A 5 TAC033250K05
300/5A 6 TAC033300K05
400/5A 8 TAC033400K05
500/5A 10 TAC033500K05
600/5A 12 TAC033600K05


Oran cl. 5P10 VA Ürün Kodu
150/5A 1 TAC033150L05
200/5A 1 TAC033200L05
250/5A 1.5 TAC033250L05
300/5A 2 TAC033300L05
400/5A 2.5 TAC033400L05
500/5A 3 TAC033500L05
600/5A 4 TAC033600L05


  TAC040 Serisi
Oran     cl. 5P5 VA Ürün Kodu
400/5A 1 TAC040400K05
500/5A 1.5 TAC040500K05
600/5A 2 TAC040600K05
800/5A 3 TAC040800K05
1000/5A 3.5 TAC041000K05


  TAC051 Serisi
Oran cl. 5P5 VA Ürün Kodu
200/5A 2 TAC051200K05
250/5A 3 TAC051250K05
300/5A 3.5 TAC051300K05
400/5A 4 TAC051400K05
500/5A 5 TAC051500K05
600/5A 6 TAC051600K05
800/5A 7 TAC051800K05
1000/5A 10 TAC0511K0K05
1200/5A 12 TAC0511K2K05
1500/5A 14 TAC0511K5K05


Oran     cl. 5P10 VA Ürün Kodu
500/5A 1.5 TAC051500L05
600/5A 2 TAC051600L05
800/5A 2.5 TAC051800L05
1000/5A 2.8 TAC0511K0L05
1200/5A 3.3 TAC0511K2L05
1500/5A 4 TAC0511K5L05


  TAT061 Serisi
Oran     cl. 5P5 VA Ürün Kodu
600/5A 1.5 TAT061600K05
800/5A 2 TAT061800K05
1000/5A 2.5 TAT0611K0K05
1200/5A 2.8 TAT0611K2K05
1500/5A 3.3 TAT0611K5K05
2000/5A 4 TAT0612K0K05


  TAT050 Serisi
Oran cl. 5P5 VA Ürün Kodu
100/5A 5 TAT0050100K05
150/5A 5 TAT0050150K05
200/5A 7 TAT0050200K05
250/5A 8 TAT0050250K05
300/5A 8.5 TAT0050300K05
400/5A 10 TAT0050400K05
500/5A 10 TAT0050500K05
600/5A 12.5 TAT0050600K05
800/5A 12.5 TAT0050800K05
1000/5A 15 TAT00501K0K05


Oran cl. 5P10 VA Ürün Kodu
100/5A 2 TAT0050100L05
150/5A 3.5 TAT0050150L05
200/5A 5 TAT0050200L05
250/5A 6 TAT0050250L05
300/5A 7 TAT0050600L05
400/5A 7 TAT0050400L05
500/5A 9 TAT0050500L05
600/5A 10 TAT0050600L05
800/5A 10 TAT0050800L05
1000/5A 10 TAT00501K0L05


Oran cl. 5P15 VA Ürün Kodu
100/5A 1 TAT0050100M05
150/5A 1.5 TAT0050150M05
200/5A 2.5 TAT0050200M05
250/5A 3 TAT0050250M05
300/5A 3.5 TAT0050300M05
400/5A 4 TAT0050400M05
500/5A 5 TAT0050500M05
600/5A 6 TAT0050600M05
800/5A 7 TAT0050800M05
1000/5A 8 TAT00501K0M05


Oran cl. 5P20 VA Ürün Kodu
100/5A 1 TAT0050100N05
150/5A 1.5 TAT0050150N05
200/5A 2 TAT0050200N05
250/5A 2.5 TAT0050250N05
300/5A 3 TAT0050300N05
400/5A 3.5 TAT0050400N05
500/5A 3.5 TAT0050500N05
600/5A 2.5 TAT0050600N05
800/5A 3 TAT0050800N05
1000/5A 3.5 TAT00501K0N05


  TAT063 Serisi
Oran cl. 5P5 VA Ürün Kodu
400/5A 4 TAT063400K05
500/5A 5 TAT063500K05
600/5A 6 TAT063600K05
800/5A 8 TAT063800K05
1000/5A 10 TAT0631K0K05
1200/5A 12 TAT0631K2K05
1500/5A 12 TAT0631K5K05
2000/5A 12 TAT0632K0K05


Oran cl. 5P10 VA Ürün Kodu
400/5A 1.5 TAT063400L05
500/5A 1.5 TAT063500L05
600/5A 2 TAT063600L05
800/5A 2.5 TAT063800L05
1000/5A 3 TAT0631K0L05
1200/5A 3 TAT0631K2L05
1500/5A 3 TAT0631K5L05
2000/5A 3 TAT0632K0L05


  TAT090 Serisi
Oran cl. 5P5 VA Ürün Kodu
600/5A 3 TAT090600K05
800/5A 5 TAT090800K05
1000/5A 6.5 TAT0901K0K05
1200/5A 8 TAT0901K2K05
1500/5A 9 TAT0901K5K05
2000/5A 12.5 TAT0902K0K05
2500/5A 15 TAT0902K5K05


Oran cl. 5P10 VA Ürün Kodu
600/5A 1 TAT090600L05
800/5A 1.5 TAT090800L05
1000/5A 2 TAT0901K0L05
1200/5A 2.5 TAT0901K2L05
1500/5A 2.5 TAT0901K5L05
2000/5A 3 TAT0902K0L05
2500/5A 3 TAT0902K5L05


  TAT082 Serisi
Oran cl. 5P5 VA Ürün Kodu
400/5A 10 TAT082400K05
500/5A 12 TAT082500K05
600/5A 15 TAT082600K05
800/5A 20 TAT082800K05
1000/5A 20 TAT0821K0K05
1200/5A 25 TAT0821K2K05
1500/5A 40 TAT0821K5K05
2000/5A 50 TAT0822K0K05
2500/5A 50 TAT0822K5K05


Oran cl. 5P10 VA Ürün Kodu
400/5A 5 TAT082400L05
500/5A 6 TAT082500L05
600/5A 7 TAT082600L05
800/5A 8 TAT082800L05
1000/5A 12 TAT0821K0L05
1200/5A 13 TAT0821K2L05
1500/5A 15 TAT0821K5L05
2000/5A 15 TAT0822K0L05
2500/5A 15 TAT0822K5L05


Oran cl. 5P15 VA Ürün Kodu
500/5A 1.5 TAT082500M05
600/5A 2 TAT082600M05
800/5A 3 TAT082800M05
1000/5A 4 TAT0821K0M05
1200/5A 5 TAT0821K2M05
1500/5A 6 TAT0821K5M05
2000/5A 7 TAT0822K0M05
2500/5A 7 TAT0822K5M05


  TAT101 Serisi
Oran cl. 5P5 VA Ürün Kodu
500/5A 3 TAT101500K05
600/5A 8 TAT101600K05
800/5A 12 TAT101800K05
1000/5A 15 TAT1011K0K05
1200/5A 15 TAT1011K2K05
1500/5A 15 TAT1011K5K05
2000/5A 20 TAT1012K0K05
2500/5A 25 TAT1012K5K05
3000/5A 30 TAT1013K0K05
4000/5A 30 TAT1014K0K05


Oran cl. 5P10 VA Ürün Kodu
500/5A 2 TAT101500L05
600/5A 4 TAT101600L05
800/5A 6 TAT101800L05
1000/5A 7 TAT1011K0L05
1200/5A 8 TAT1011K2L05
1500/5A 8 TAT1011K5L05
2000/5A 10 TAT1012K0L05
2500/5A 12 TAT1012K5L05
3000/5A 15 TAT1013K0L05
4000/5A 15 TAT1014K0L05


Oran cl. 5P15 VA Ürün Kodu
800/5A 2 TAT101800M05
1000/5A 3 TAT1011K0M05
1200/5A 4 TAT1011K2M05
1500/5A 4 TAT1011K50M05
2000/5A 4 TAT1012K0M05
2500/5A 6 TAT1012K5M05
3000/5A 7 TAT1013K0M05
4000/5A 7 TAT1014K0M05


  TAT126 Serisi
Oran cl. 5P5 VA Ürün Kodu
400/5A 4 TAT126400K05
500/5A 5 TAT126500K05
600/5A 6 TAT126600K05
800/5A 8 TAT126800K05
1000/5A 10 TAT1261K0K05
1200/5A 12 TAT1261K2K05
1500/5A 12 TAT1261K5K05
2000/5A 12 TAT1262K0K05
2500/5A 15 TAT1262K5K05
3000/5A 15 TAT1263K0K05
4000/5A 15 TAT1264K0K05


Oran cl. 5P10 VA Ürün Kodu
400/5A 1.5 TAT126400L05
500/5A 1.5 TAT126500L05
600/5A 2 TAT126600L05
800/5A 2.5 TAT126800L05
1000/5A 3 TAT1261K0L05
1200/5A 3 TAT1261K2L05
1500/5A 3 TAT1261K5L05
2000/5A 3 TAT1262K0L05
2500/5A 4 TAT1262K5L05
3000/5A 4 TAT1263K0L05
4000/5A 4 TAT1264K0L05


  TAT127 Serisi
Oran cl. 5P5 VA Ürün Kodu
800/5A 25 TAT127800K05
1000/5A 30 TAT1271K0K05
1200/5A 35 TAT1271K2K05
1500/5A 45 TAT1271K5K05
2000/5A 55 TAT1272K0K05
2500/5A 75 TAT1272K5K05
3000/5A 90 TAT1273K0K05
4000/5A 120 TAT1274K0K05
5000/5A 150 TAT1275K0K05


Oran cl. 5P10 VA Ürün Kodu
800/5A 10 TAT127800L05
1000/5A 12 TAT1271K0L05
1200/5A 15 TAT1271K2L05
1500/5A 16 TAT1271K5L05
2000/5A 50 TAT1272K0L05
2500/5A 25 TAT1272K5L05
3000/5A 30 TAT1273K0L05
4000/5A 40 TAT1274K0L05
5000/5A 50 TAT1275K0L05


Oran cl. 5P15 VA Ürün Kodu
800/5A 5 TAT127800M05
1000/5A 6 TAT1271K0M05
1200/5A 7 TAT1271K2M05
1500/5A 8 TAT1271K5M05
2000/5A 10 TAT1272K0M05
2500/5A 12 TAT1272K5M05
3000/5A 15 TAT1273K0M05
4000/5A 20 TAT1274K0M05
5000/5A 25 TAT1275K0M05


Oran cl. 5P20 VA Ürün Kodu
800/5A 2.5 TAT127800N05
1000/5A 3 TAT1271K0N05
1200/5A 3.5 TAT1271K2N05
1500/5A 4 TAT1271K5N05
2000/5A 5 TAT1272K0N05
2500/5A 6 TAT1272K5N05
3000/5A 6 TAT1273K0N05
4000/5A 8 TAT1274K0N05
5000/5A 10 TAT1275K0N05


  TAT128 Serisi
Oran cl. 5P5 VA Ürün Kodu
1000/5A 30 TAT1281K0K05
1200/5A 35 TAT1281K2K05
1500/5A 40 TAT1281K5K05
2000/5A 60 TAT1282K0K05
2500/5A 70 TAT1282K5K05
3000/5A 80 TAT1283K0K05
4000/5A 100 TAT1284K0K05
5000/5A 40 TAT1285K0K05


Oran cl. 5P10 VA Ürün Kodu
1000/5A 10 TAT1281K0L05
1200/5A 12 TAT1281K2L05
1500/5A 15 TAT1281K5L05
2000/5A 20 TAT1282K0L05
2500/5A 20 TAT1282K5L05
3000/5A 25 TAT1283K0L05
4000/5A 30 TAT1284K0L05
5000/5A 15 TAT1285K0L05


Oran cl. 5P15 VA Ürün Kodu
1000/5A 10 TAT1281K0M05
1200/5A 12 TAT1281K2M05
1500/5A 15 TAT1281K5M05
2000/5A 20 TAT1282K0M05
2500/5A 20 TAT1282K5M05
3000/5A 25 TAT1283K0M05
4000/5A 30 TAT1284K0M05
5000/5A 15 TAT1285K0M05


  TAT129 Serisi
Oran cl. 5P5 VA Ürün Kodu
1000/5A 30 TAT1291K0K05
1200/5A 35 TAT1291K2K05
1500/5A 40 TAT1291K5K05
2000/5A 60 TAT1292K0K05
2500/5A 70 TAT1292K5K05
3000/5A 80 TAT1293K0K05
4000/5A 100 TAT1294K0K05
5000/5A 40 TAT1295K0K05
6000/5A 40 TAT1296K0K05


Oran cl. 5P10 VA Ürün Kodu
1000/5A 10 TAT1291K0L05
1200/5A 12 TAT1291K2L05
1500/5A 15 TAT1291K5L05
2000/5A 20 TAT1292K0L05
2500/5A 20 TAT1292K5L05
3000/5A 25 TAT1293K0L05
4000/5A 30 TAT1294K0L05
5000/5A 15 TAT1295K0L05
6000/5A 15 TAT1296K0L05


Oran cl. 5P15 VA Ürün Kodu
1000/5A 5 TAT1291K0M05
1200/5A 6 TAT1291K2M05
1500/5A 8 TAT1291K5M05
2000/5A 10 TAT1292K0M05
2500/5A 10 TAT1292K5M05
3000/5A 12 TAT1293K0M05
4000/5A 15 TAT1294K0M05
5000/5A 5 TAT1295K0M05
6000/5A 5 TAT1296K0M05


  TAT165 Serisi
Oran cl. 5P5 VA Ürün Kodu
1200/5A 30 TAT1651K2K05
1500/5A 40 TAT1651K5K05
2000/5A 60 TAT1652K0K05
2500/5A 70 TAT1652K5K05
3000/5A 80 TAT1653K0K05
4000/5A 100 TAT1654K0K05
5000/5A 40 TAT1655K0K05
6000/5A 40 TAT1656K0K05
8000/5A 40 TAT1658K0K05


Oran cl. 5P10 VA Ürün Kodu
1000/5A 10 TAT1651K0L05
1200/5A 12 TAT1651K2L05
1500/5A 15 TAT1651K5L05
2000/5A 20 TAT1652K0L05
2500/5A 20 TAT1652K5L05
3000/5A 25 TAT1653K0L05
4000/5A 30 TAT1654K0L05
5000/5A 15 TAT1655K0L05
6000/5A 15 TAT1656K0L05
8000/5A 15 TAT1658K0L05


Oran cl. 5P15 VA Ürün Kodu
1000/5A 5 TAT1651K0M05
1200/5A 6 TAT1651K2M05
1500/5A 8 TAT1651K5M05
2000/5A 10 TAT1652K0M05
2500/5A 10 TAT1652K5M05
3000/5A 12 TAT1653K0M05
4000/5A 15 TAT1654K0M05
5000/5A 5 TAT1655K0M05
6000/5A 5 TAT1656K0M05
8000/5A 5 TAT1658K0M05


  TAT225 Serisi
Oran cl. 5P5 VA Ürün Kodu
1000/5A 30 TAT2251K0K05
1200/5A 35 TAT2251K2K05
1500/5A 40 TAT2251K5K05
2000/5A 60 TAT2252K0K05
2500/5A 70 TAT2252K5K05
3000/5A 80 TAT2253K0K05
4000/5A 100 TAT2254K0K05
5000/5A 40 TAT2255K0K05
6000/5A 40 TAT2256K0K05
8000/5A 40 TAT2258K0K05


Oran cl. 5P10 VA Ürün Kodu
1000/5A 10 TAT2251K0L05
1200/5A 12 TAT2251K2L05
1500/5A 15 TAT2251K5L05
2000/5A 20 TAT2252K0L05
2500/5A 20 TAT2252K5L05
3000/5A 25 TAT2253K0L05
4000/5A 30 TAT2254K0L05
5000/5A 15 TAT2255K0L05
6000/5A 15 TAT2256K0L05
8000/5A 15 TAT2258K0L05


Oran cl. 5P15 VA Ürün Kodu
1000/5A 5 TAT2251K0M05
1200/5A 6 TAT2251K2M05
1500/5A 8 TAT2251K5M05
2000/5A 10 TAT2252K0M05
2500/5A 10 TAT2252K5M05
3000/5A 12 TAT2253K0M05
4000/5A 15 TAT2254K0M05
5000/5A 5 TAT2255K0M05
6000/5A 5 TAT2256K0M05
8000/5A 5 TAT2258K0M05
TOP
