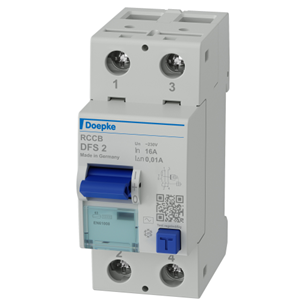

Product Group Basic Applications

AC/A tipi artık akım koruması yapmak üzere, anma gerilimi 230 V ve frekansı 50 Hz olan devrelerin korunması için tasarlanmıştır.

Features:

• Tripping independent of mains and auxiliary voltage
• Sensitive to AC residual currents and pulsating DC residual currents
• Compact design for all rated currents
• High short-circuit withstand
• Double-sided, two-layer terminals for large conductor cross-sections and busbars
• Switch position indicator
• Three-position multifunction switch: "on", "off" and "trip"
• Neutral conductor on the left or right

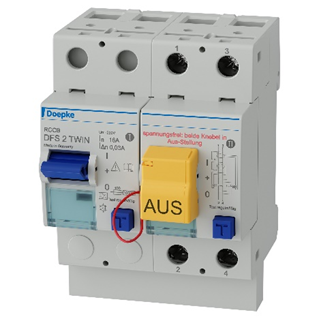

• Options with twin design
• Quick fixing to the mounting rail
• Any mounting position

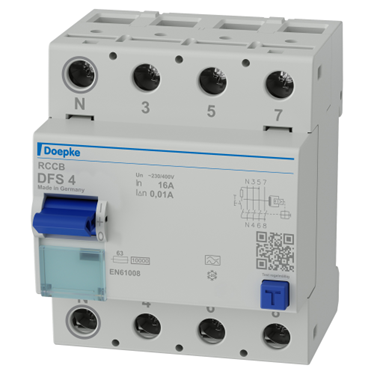

• From 16 A to 125 A, 2 or 4 poles
• 10 mA, 30 mA, 100 mA, 300 mA and 500 mA tripping
